Ultra Arm

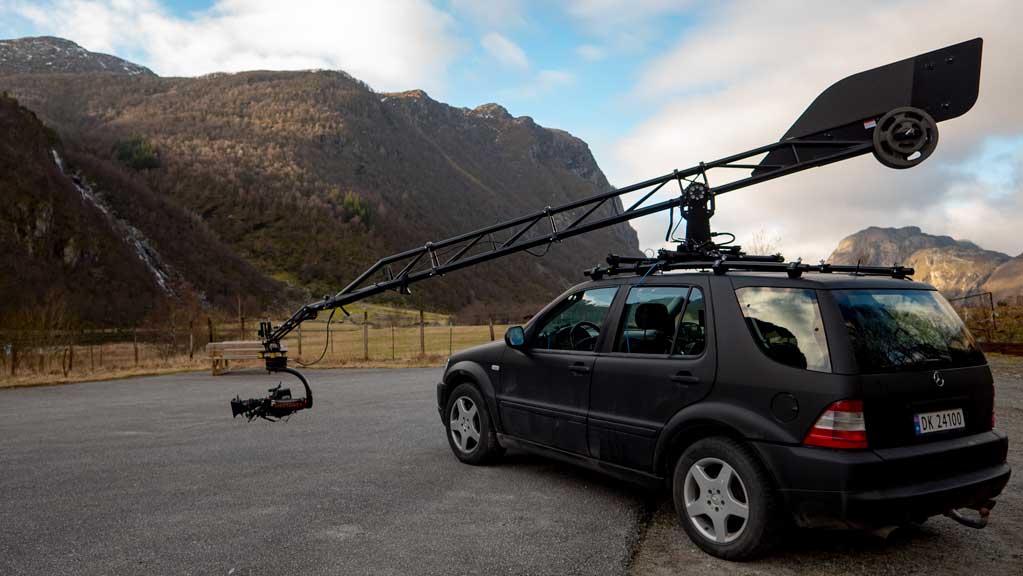

ULTRA ARM features a long 4meter arm, capable of positioning 25kg payloads at any position around the vehicle.

ULTRA handles off-road, heavy rain, and extreme temperatures. The arm features active gyro stabilization and adjustable passive 3-axis nose dampening to isolate the head and camera package for image stabilization. IP66 rated.

ULTRA mounts to cars, trucks, UTV’s, boats and custom rigs via TÜV-Certified 2" Speed Rail clamps. Our Suction Speed Rail Kit creates a temporary speed rail grid anywhere you need it. If you can dream it, ULTRA can probably do it.

  • max payload: 25 kg
  • length from fulcrum: 3.6m / 12 ft
  • max wind speed: 160 kmh
  • max acceleration: 1G lat long
  • operating temperature: -34C to 43C
  • gimbals: Shotover G1, Flighthead mini 3, Ronin 2, Movi Pro, Movi XL
  • Weight unloaded: 86kg
  • Monitors: 4 monitor ready
  • Rotations: 360° continuous pan
  • set-up time chase car: 1.2 hours
  • set-up time rental car: 2 hours

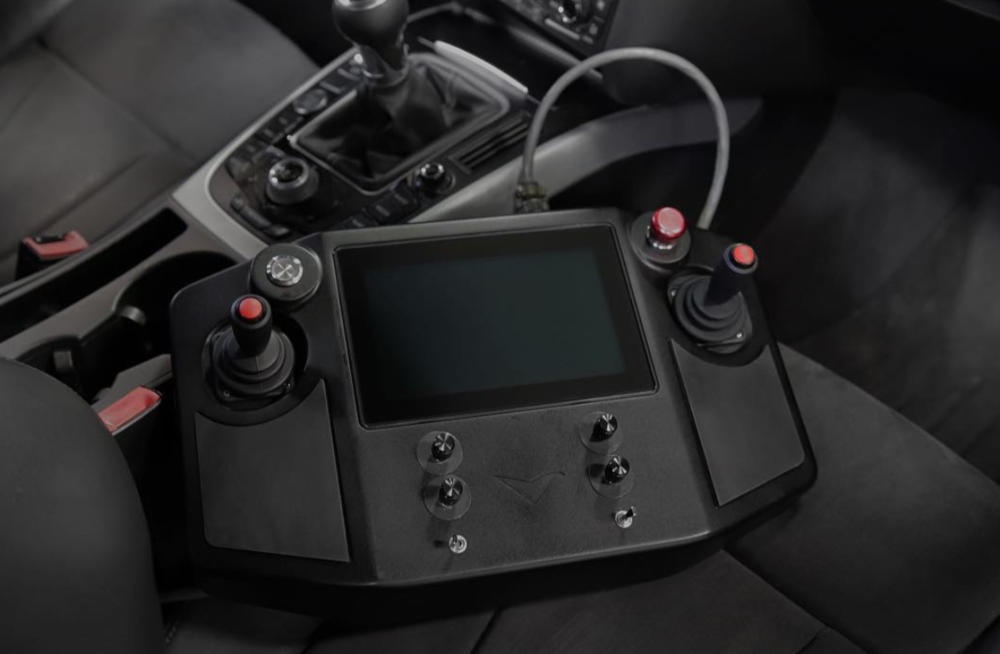

ULTRA CONTROLLER

The MotoCrane Controller features dual-stick operation for independent control of the Swing and Lift axes, centered around a 7” touchscreen display for real-time position feedback, limits, and system diagnostics.

Ergonomic hand rests help to relieve operator strain during prolonged use. CAN-BUS Expansion ports also make it possible for future integrations with Alpha wheels, PLC, etc.
